PINS

Pins are used for fastening and alignment in various applications. Diameter from 10mm and above



Precision Dowel & Locating Pins: Solid, smooth cylindrical pins turned to tight tolerances with Radius or chamfered ends for easy insertion and CNC turned and precision-ground after turning and hardening. We Manufacturing for Engine block positioning and gearboxes.

Taper Pins: Pins manufactured with a uniform taper along their length. CNC taper turning ensures exact angular consistency across large diameters. Used for transmitting torque between shafts and hubs, critical alignment assemblies requiring zero backlash.

Flanged & Stepped Pins: The stepped pin features multiple outer diameters (steps) along the body, with a built-in flange collar. Functions simultaneously as a locating pin, axial stop, and load-bearing shoulder. We are manufacturing flanged and stepped :- arm control pins, gear assembly pins, and automated equipment linkage pin.

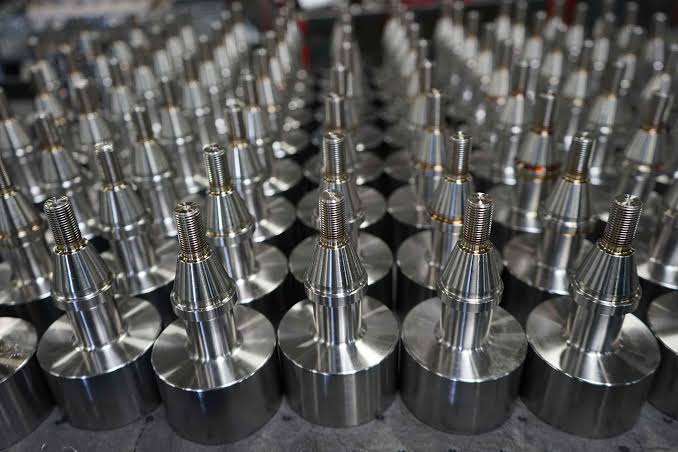

Threaded & Stud Pins: The pin features turned thread (metric, UNC, or UNF) on one or both ends, combined with a smooth precision pilot body. This is designed to act as a precision locator while allowing secure nut retention. We are supplying threaded studs and pins to automotive industries, heavy machinery pivots, and structural frame joints.

Grooved & Retaining Pins: The pin with machined a single or multiple circumferential grooves along the body. This type of pin accommodates external snap rings (circlips), E-clips, or internal locking mechanisms to keep parts axially contained. This one is work as Gear retention shafts, drive shafts, and pneumatic/hydraulic actuary linkages.

Custom Knurled & Splined Pins: In this pin diamond or straight knurled surfaces, or external splines turned/milled onto the body. And it’s Provides high friction or rotational lock when press-fitted into soft metal or composite housings. It uses for bushing retention, high-vibration automotive components, and heavy-duty structural inserts.



A) Material Options :  Stainless Steel, Alloy Steel, Carbon Steel, Brass, Aluminum

B) Diameter Range :  10mm to 100mm

C) Tolerances Standard :  0.01mm to 0.05mm turned and Precision ground as per requirement

D) Heat Treatment :  Case hardening, induction hardening, nitriding

E) Plating & Coating :  Zinc plating, nickel plating, chrome plating, anodizing, black oxide
